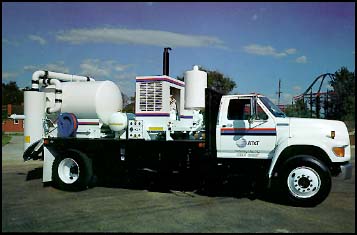

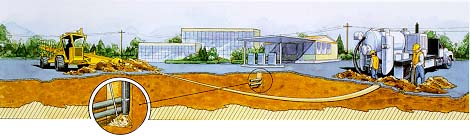

VACUUM EXCAVATION SYSTEMS [Directional Boring and the Vac-N-Dig/System 3] [System 3 Specifications] [System 3 Benefits] The VAC-N-DIG/SYSTEM 3 offers the ultimate in power, reliability and ease of use. It is designed from the ground up with features that make an operator's job easier and faster than ever before. These features, combined with the highest quality components that won't let you down in the middle of an important job, means the SYSTEM 3 is your best bet when it comes to getting the greatest possible return on your investment dollar. The SYSTEM 3 is a true multi-purpose vacuum system that enables operators to use it for potholing and mud slurry removal as well as for other cleaning tasks such as removing wet or dry debris from valve boxes, transformer vaults and catch basins. The SYSTEM 3's ability to do a number of jobs makes it that much easier to justify the capital expenditure required to put this machine to work in your business. The SYSTEM 3 is normally installed on a flat bed truck body, but may also be installed on a 5th wheel trailer. Our standard configuration employs an 8'x16' flatbed, which allows plenty of room for tools and supplies. Our customers have the choice of providing the vehicle or allowing us to provide a GMC, Ford or International truck. If you elect to have us provide the truck, you will pay no more as our policy is to pass along the cost of the truck to you at our cost without mark-up. DIRECTIONAL BORING & THE VAC-N-DIG/SYSTEM 3 [Page Up] Directional boring is a trenchless technology that has grown dramatically in importance and popularity as boring equipment continues to improve and as utilities and contractors become familiar with the tremendous advantages it offers compared with open trench methods. TheVAC-N-DIG System 3 plays an important dual role in directional boring by enabling operators to POT HOLE to verify the exact location of utilities intersecting the bore path and also to REMOVE BENTONITE MUD SLURRY from the boring site. BENEFITS: 1) Reduced damage claims. 2)Greater employee safety/fewer injuries/lower Workmen's Compensation costs. 3) Increased equipment utilization by having one machine do both jobs - Pot Holing and Slurry Removal. POT HOLING: VAC-N-DIG's unique design allows operators to perform single pot holes and back fill directly from the soil collection canister or to perform multiple pot holes collecting all soil in the large 3 cubic yard tank for removal, back filling with sand or other material. SLURRY REMOVAL: A simple change in vacuum hose connections allows the operator to quickly collect up to 580 gallons (1,000 gallons optional) of bentonite mud for recycling or disposal. SYSTEM 3 SPECIFICATIONS [Page Up] Power Source Engine Type: Turbo Diesel 4 Cylinder, Electric Start Model: John Deere 4045T PowerTech Rating: 102 HP Fuel System: Interconnected to Truck System Electrical: 12 V DC, 85 AMP Power Transfer: Manual clutch, Belt Drive Operational Data Vacuum: 15" HG @ 1,000 CFM Air Lance: 180 PSI @ 165 CFM Remote Operation: Up to 500 ft. Hose Sizes: Vacuum 3-4", Air 3/4" Filtration System Self-Purging Manual Cleaning only every 3-6 months Holding Tank/Canister Data Canister: 55 Gal. w/Air Actuated Drop Door Holding Tank: 3 Cubic Yard (580 gallon) Standard Up to 1,100 Gal. Optional 19" Posi-Seal Manway 3" Liquid Drain Valve Operator Control Panel Fully supervised, Automatic Shut-Down, Tachometer, Air Pressure, Temperature, Remote Vacuum Gauge, Oil Pressure Truck/Trailer Requirements Truck: 2 Ton w/Flat Bed Body 8' x 16' Trailer: 5th Wheel, GVW 18,000 Dimensions (Truck Mounted Overall) Length 26' 0" Width 8' 0" Height 10' 9" Standard Equipment 33' of 3" and 4" Smooth Bore Vacuum Hose, 100' of 3/4" Compressor Hose, Fiberglass Air Lance, Underbody Storage Tubes Custom Options Tool Boxes (under and/or above deck) Traffic Direction Board Sand Blast System Pressurized 42 Gallon Water Wash-Down System Retractable Compressor Hose Reels Side Rails Towing Hitches 800 gallon spoils tank High Pressure Water Option 3000 PSI @ 3 GPM 200 Gallon Tank SYSTEM 3 BENEFITS [Page Up] Powerful Digging Action The combination of high output compressor, efficient laminar flow nozzle design and strong vacuum make digging easier and faster in all soil conditions. The System 3 will dig a 5' deep by 1'x1' hole in an average time of just 7-8 minutes in all soil conditions. Single or Multiple Pot Holes Choose between doing single pot holes and back filling using the rear soil collection canister or doing multiple pot holes and collecting spoils in the large tank for removal. Faster, easier, increased productivity. Single Engine Design Unlike other systems which use as many as three separate engines, the System 3 uses a single 102 HP turbo-charged diesel engine to power all systems - vacuum, air and water. The advantage - lower maintenance and greater reliaility. Self-Purging, Washable Filters Reverse flow air automatically cleans the filters. Every 3-6 months when additional cleaning is necessary simply remove, clean and re-install. Less downtime means more time on the job. Hydraulic Powered Dumping Quick, easy emptying of large 3 cubic yard (580 gallon) tank. Supervisory Control System Automatic monitoring of all systems allows a two-man crew to operate the system. Remote Operation For areas of difficult access, operation at distances up to 500 feet away from the truck are possible. Wet or Dry Operation No need to worry about having to change filters if wet conditions are encountered. Quiet Operation High efficiency absorption chamber silencer reduces noise and enables you to be a good neighbor. Slurry Vacuum Mode Simply change vacuum line connections to vacuum and store up to 580 gallons of bentonite mud slurry, more if required. Top-of-the-Line Components Such as our John Deere diesel engine means service is always available nearby if required. Maintenance Free Design Monitor and maintain oil levels, follow recommended checks and adjustments and occasionally wash the polyester filter - That's it! Selectable Air or Water Digging Select the digging medium best suited to soil conditions, with optional high pressure water system. A FINAL NOTE....... When you buy a VAC-N-DIG vacuum excavator we promise we won't "love you and leave you." We will have one of our trained technicians deliver the system to you and spend a couple of days working with your people, training them in the operation and maintenance of our equipment. We will teach them the things we have learned, often from our customers, that will enable them to take full advantage of the many features of our VAC-N-DIG SYSTEMS. And, most importantly, we will be there whenever you need us, only a toll-free call away, to provide whatever assistance you may require. © Copyright 1999 Barone, Inc. All rights reserved.
