The SYSTEM 2000 represents our best efforts to bring you the most efficient vacuum excavator possible...the performance you need at a price you can afford.

The design team for the SYSTEM 2000 drew upon all that we have learned about vacuum excavation over the past ten years. Many of the features pioneered by Vacmasters and developed and refined in the original VAC-N-DIG and VAC-N-DIG/SYSTEM 3 machines have been further refined and incorporated in the SYSTEM 2000. Features such as our single engine design, self-purging filtration system, laminar flow nozzle and selectable air or water digging are all present in the SYSTEM 2000 and enable operators to perform the most billable work in the least amount of time. The ability of the SYSTEM 2000 to play an important role in lowering costs and increasing productivity is the main reason why we are so excited about the SYSTEM 2000.

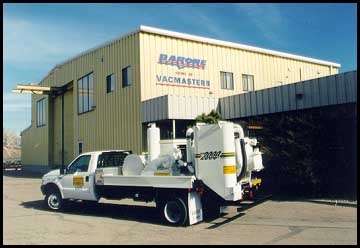

The SYSTEM 2000 is installed on a 14' flatbed body mounted on a heavy duty one-ton diesel chassis at our cost without mark-up or, if you prefer, we will install the SYSTEM 2000 on your chassis or on an 8000 lb. GVW trailer.

Power Source Engine Type: Turbo Diesel, 4 Cylinder Model: John Deere 4020T Power Rating: 50 HP Fuel System: Interconnected to Truck System Power Transfer: Manual Clutch, Belt Drive Operational Data Vacuum: 14" Hg @ 780 CFM Compressor: 150 PSI @ 100 CFM High Pressure Water: 3000 PSI @ 3 GPM Low Pressure Water: 50 PSI (for Garden Hose Clean-up) Tank Capacities 200 Gallon Spoils Tank 80/110 Gallon Pressurized Water Tank Operator Control Panel Instrumentation Fully Supervised, Automatic Shut-Down Engine RPM, Temperature, Oil Pressure Vacuum Air Pressure

Chassis/Body 15,000 GVW GMC or 17,500 GVW Ford, Heavy Duty one-ton Chassis Diesel Engine 13' 6" x 7' 4" Flatbed Body (GMC) 14' 6" x 7' 4" Flatbed Body (Ford) Dimensions (Truck Mounted Overall) Length: 24' 3" (GMC), Length: 25' 3" (Ford) Width: 88" Height: 8' 6" Hoses 33' of 4" Smooth Bore Vacuum Hose 50' of 3/4" High Pressure Air Hose 50' of 3/8" High Pressure Water Hose Standard Equipment Traffic Direction Signal Tool/Equipment Storage Boxes (1) Underbody (1) Crossbody (1) Step Box Retractable Compressed Air Hose Reel Fiberglass Air Lance High Pressure Water Wand Rear Protective Bumper Side Rail Vacuum Hose Rack

Selectable Air or Water Digging Select the digging medium best suited to soil conditions. Single Engine Design A powerful, reliable John Deere turbo charged diesel engine drives all systems--vacuum, water & air. Only one engine to operate & maintain. Self Purging, Cleanable Filters Powerful reverse flow air quickly cleans the filter. When additional cleaning is needed simply remove, clean and re-install. Less downtime means more time on the job. Hydraulic Powered Dumping Quick, easy emptying of large 200 gallon spoils tank. Supervisory Control Panel Automatic monitoring of all systems with auto-shutdown allows a 2-man crew to operate the system. Remote Operation For areas of difficult access,operation at distances of up to 200 feet away from the truck are possible. Wet or Dry Operation No need to worry about having to change filters if wet conditions are encountered. Quiet Operation High efficiency absorption chamber silencer reduces noise and enables you to be a good neighbor. Slurry Vacuum Mode Designed to quickly and easily clean up directional boring bentonite mud slurry. Top-of-the-Line Components Such as our John Deere diesel engine means service is always available nearby if required. Low Maintenance Design Monitor and maintain oil levels, follow recommended checks and adjustments and every 3-6 months occasionally clean the Gore-Tex filter -- That's it!

Vacuum Excavation has become the preferred method of exposing buried utilities. It can save you time and money and greatly reduce the risks of damaged utilities and injured employees. If you have been thinking about adding vacuum excavation to your capabilities the time is now, and the SYSTEM 2000 is your best choice.
